BlackRock Bitumen: Viscosity Grade Bitumen VG10
BlackRock Bitumen proudly supplies Viscosity Grade Bitumen VG10, a high-performance binder tailored for road construction and industrial applications requiring low viscosity. Produced in the UAE, our VG10 bitumen is carefully processed and quality-checked to meet international standards.
The penetration quality bitter, often known as the input falls, is measured by a standard penetration testing, is a classification of bitumen based on its hardness or stability. The degree of entry indicates how soft or stiff bitumen is, which helps determine its suitability for specific climate and traffic conditions. The test is performed using a standardized needle under ASTM D5 or similar international standards under controlled load, time and temperature.
The penetration quality bites are widely used in the manufacture of roads, highways and sidewalks and are a basic material for the production of warm mixing asphalt. It ensures structural integrity and durability, and allows it in both flexible sidewalk structure and surface suit.

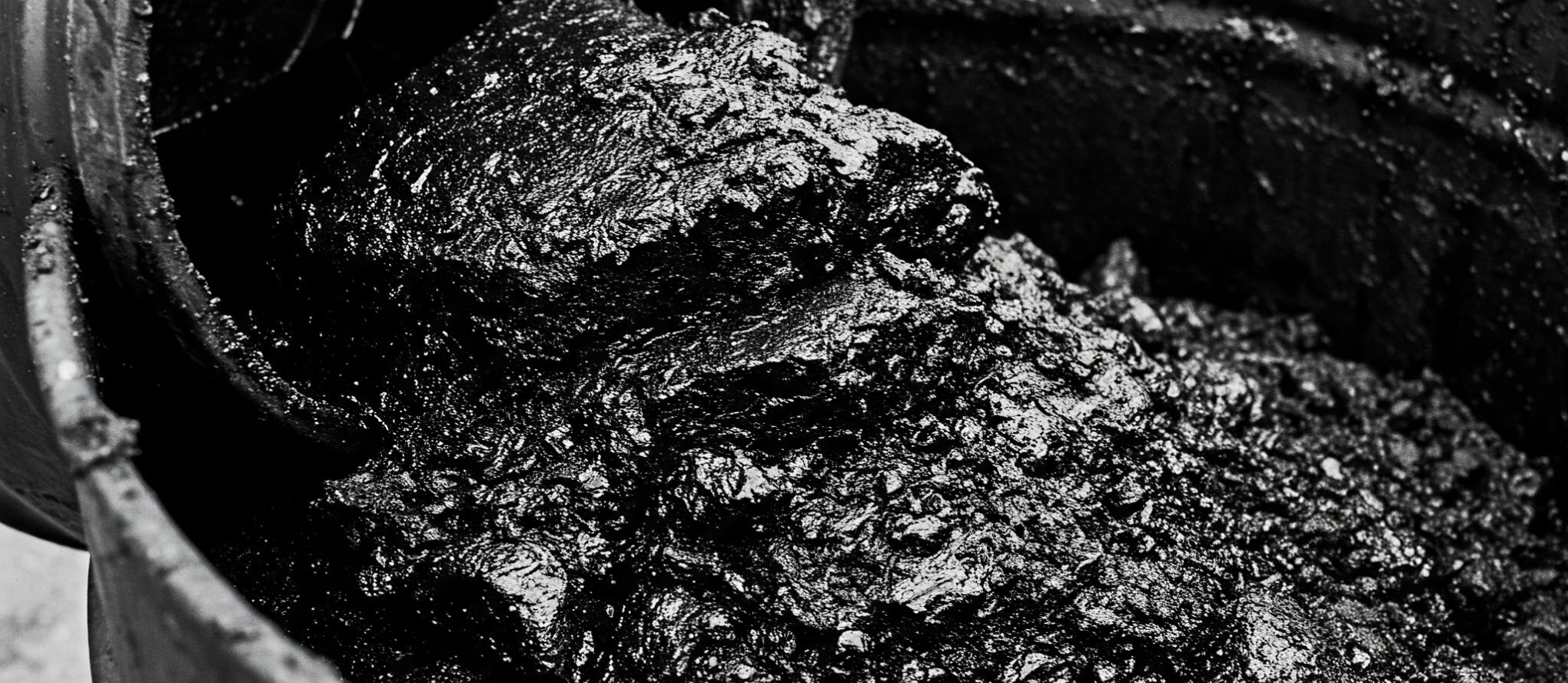

Bitumen VG10
ESSENTIAL DETAILS
DESCRIPTION
BlackRock Bitumen Advantage
Bitumen VG 10 Specification
Specification
- Absolute Viscosity, at 60° C
- Kinematic Viscosity, at 135° C
- Flash Point
- Solubility in Trichloroethylene
- Penetration Value, at 25° C
- Softening Point
- Viscosity Ratio, at 60° C
- Ductility at 25° C
Unit
- Poise
- CST
- °C
- %wt
- 0.1mm
- °C
- –
- cm
Value
- Min 800
- Min 250
- Min 220
- Min 99
- 80-100
- Min 40
- Max 4
- Min 75
Test Method
- ASTM D4402
- ASTM D2170
- ASTM D93
- ASTM D2042
- ASTM D5
- ASTM D36
- ASTM D4402
- ASTM D113
Our Working Process
Ready to Order or Need More Information?
At Blackrock Bitumen, we supply high-quality Bitumen Penetration 35/50 for durable and reliable paving solutions. Whether you’re working on road construction, industrial applications, or infrastructure projects, our bitumen ensures superior performance.
